Impedance |
|
50 ohms standard |
|
|
|
|
|
|
|
|
|
Tolerance |
|
±1 % is standard. ±2 and ±5 % available |
|
|
|
|
|
|
|
|
|
Temperature Coefficient (TCR) |
|
± 75 ppm/degree C |
|
|
|
|
|
|
|
|
|
Power |
|
10,100 Watts |
|
|
|
|
|
|
|
|
|
Substrate |
|
Aluminum nitride ceramic |
|
|
|
|
|
|
|
|
|
Resistive Element |
|
RuO2 thick film |
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
Power |
|
Frequency Range |
|
Impedance |
|
Return Loss |
|
V.S.W.R |
|
Remark |
|
|
|
|
|
|
|
10 W |
|
30 kHz ~ 3 GHz |
|
50 Ω ± 5 % |
|
≥ 18 dB |
|
≤ 1.25:1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
100 W |
|
30 kHz ~ 3 GHz |
|
50 Ω ± 5 % |
|
≥ 18 dB |
|
≤ 1.25:1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
※ Power는 주문자 요구에 따라 생산 가능합니다. |
|
|
 |
|
|
 |
|
|
|
|
|
Part No. |
|
Power
(Watts) |
|

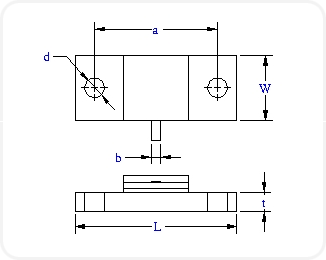

L (mm) |
|
W (mm) |
|
a (mm) |
|
b (mm) |
|
d (mm) |
|
t(mm) |
|
비 고 |
|
|
|
|
|
|
|
KPT-10-50FA |
|
10 |
|
7.6 |
|
5.1 |
|
N/A |
|
1.00 |
|
2.9 |
|
1.5 |
|
Hole이
하나인
형태 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
KPT-100-50FA |
|
100 |
|
20.3 |
|
5.7 |
|
14.2 |
|
1.5 |
|
3.3 |
|
1.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
